3/4 Shawn Shim Dovetail Offset Tool

Name: 3/4 Shawn Shim Dovetail Offset Tool
Brand: RC Woodworking Hand Tools, Inc
SKU: RCSA-001
Price: 55.0 CAD
Availability: InStock
Rating: 5.0 (11 reviews)

$55.00 - $55.00

$55.00

$55.00 - $55.00

$55.00

Gallery

Full Description

Customer Reviews

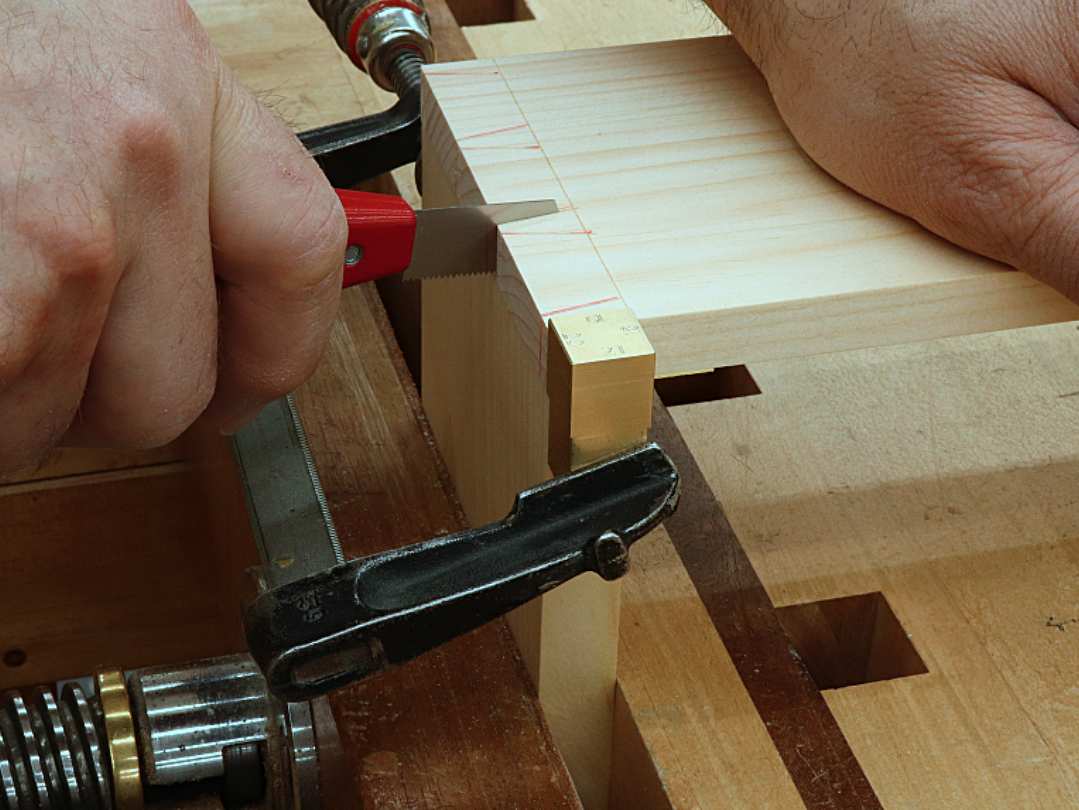

One of the most difficult tasks in hand cutting dovetails is accurately transferring the tails and precisely sawing the pins. Rob's improved method of transferring tails to the pin board by offsetting the tailboard by the thickness of the saw kerf takes all the guess work out of where to saw.

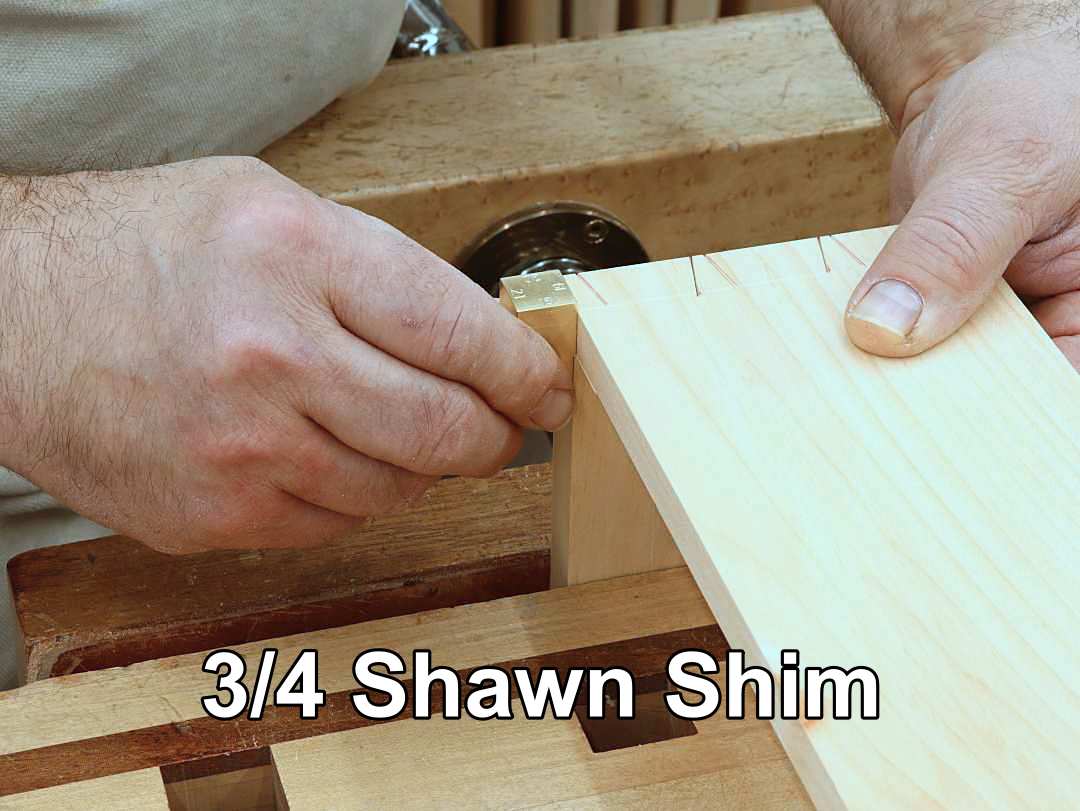

Offsetting by the exact thickness can be challenging, but the 3/4 Shawn Shim helps improve your offset accuracy. The brainchild of one of our Purple Heart Project alumni, we named the shim in honor of him.

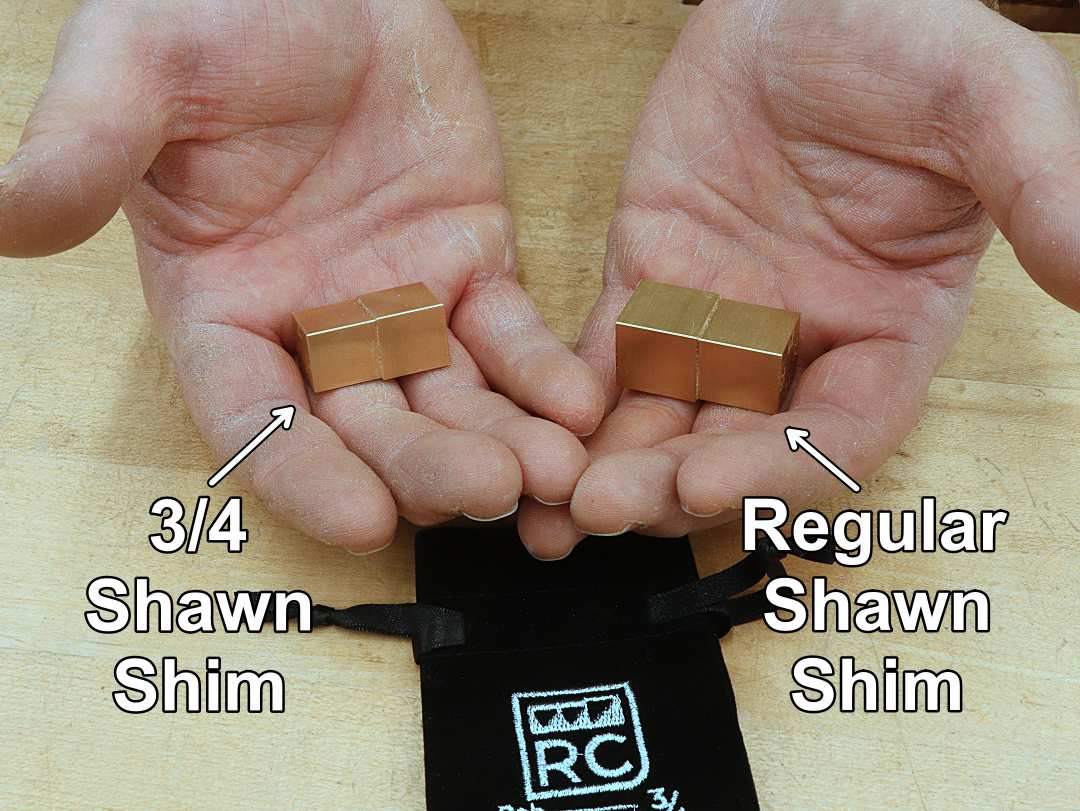

Precisely milled to work with our 3/4 dovetail saw, which requires a kerf thickness of .019 inches. The 3/4 Shawn Shim has four different offsets to allow you to tighten or loosen the fit of the dovetails as needed.

CNC milled from solid brass.

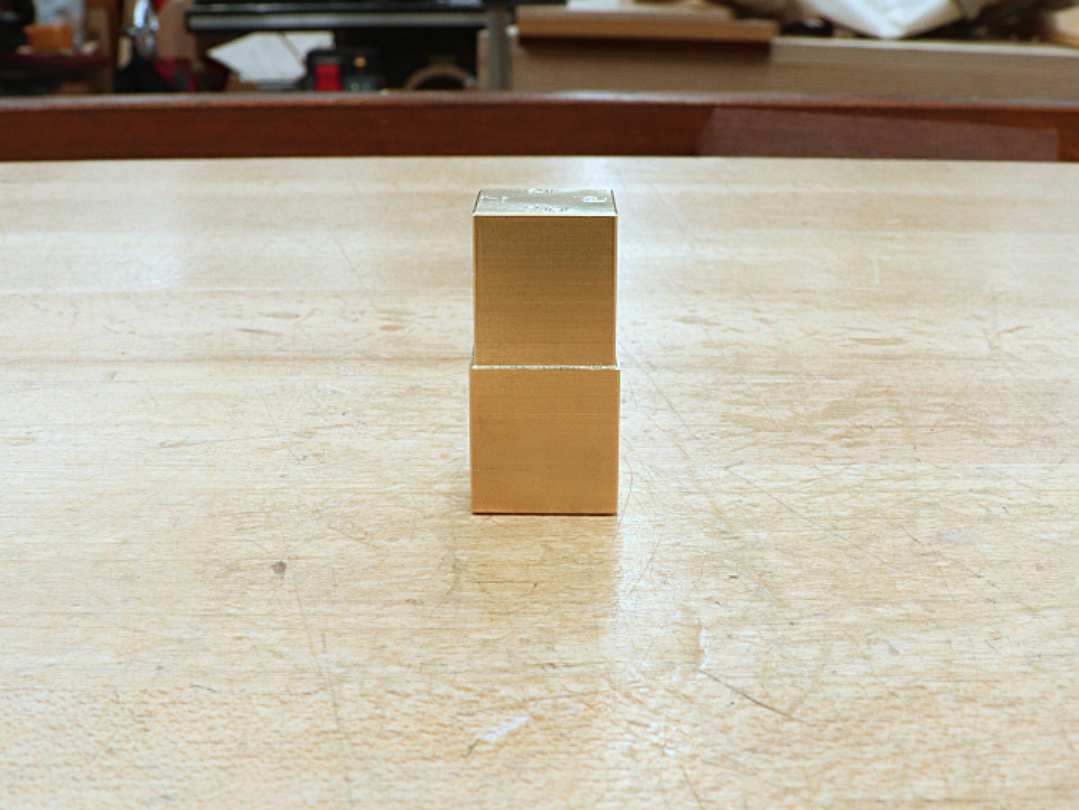

5/8 inch x 5/8 inch wide. 1-1/4 inches tall.

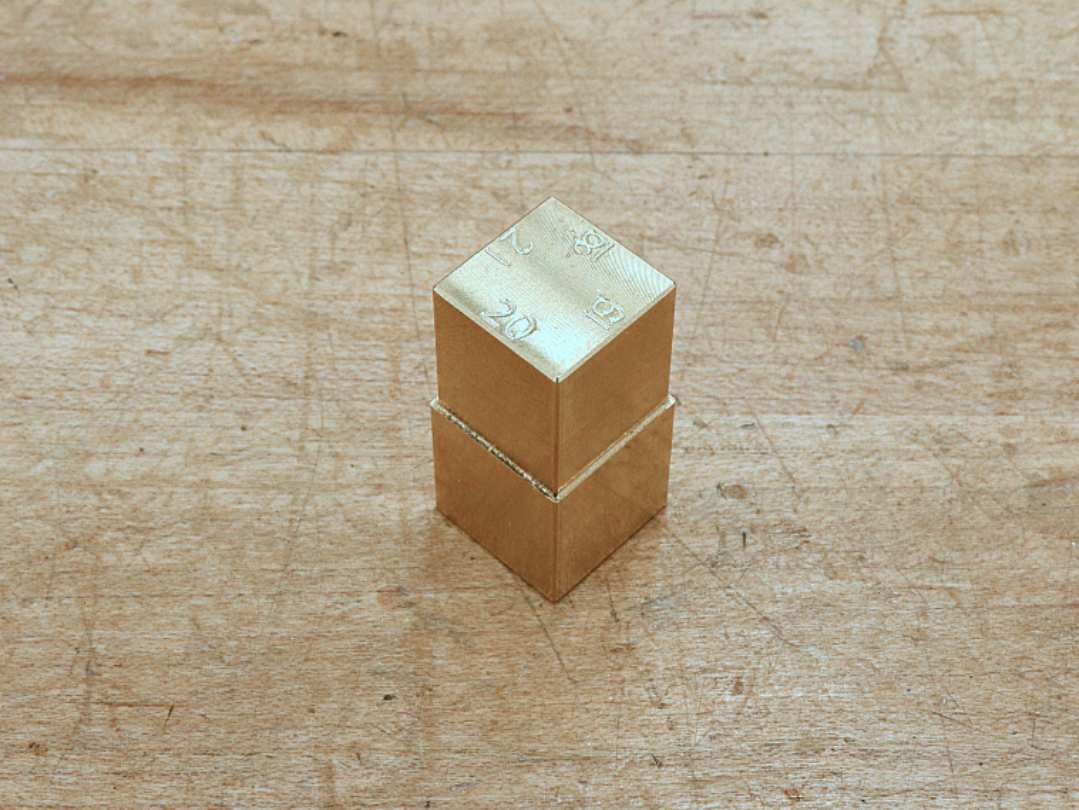

Four offset sides: .018, .019, .020, .021 of an inch thickness.

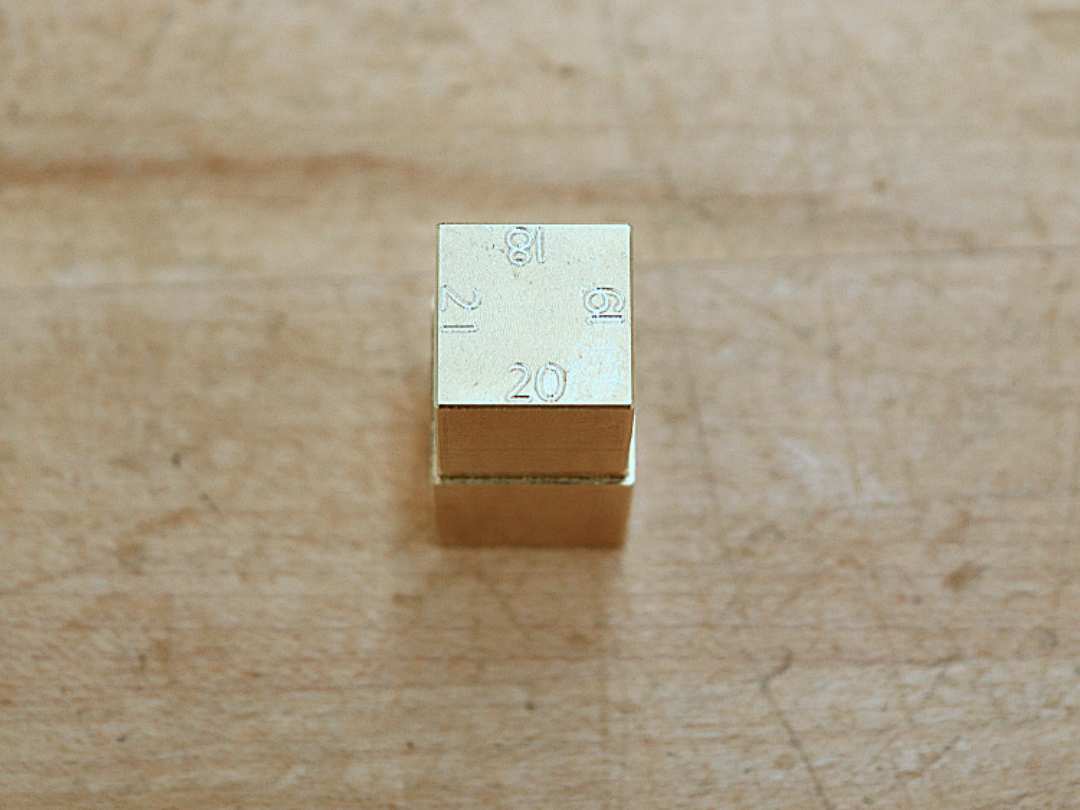

Offset amount engraved on each end of the shim.

Weight: 100 grams

Made in Canada.

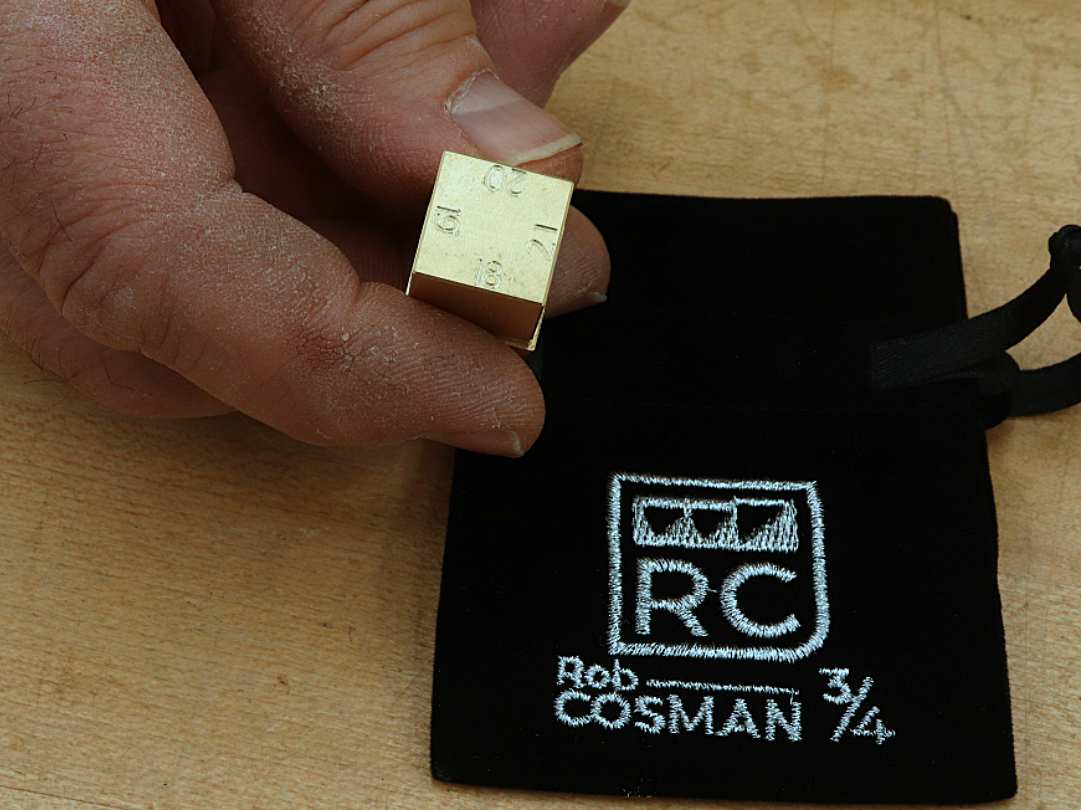

High quality product with nice storage bag

Works well

Very simple jig , I got the small one but have used it on 3/4 thick pine. I use a thin Japanese saw. Fast shipping and comes in a nice little bag to protect it

Accuracy increased 10%

Tried it with much skepticism. First time I cut dovetails with no visible gaps, thank you Rob.

Well made

This tool is well made and looks terrific.

Superb Idea to help the helpless!!

What a great idea to help those of us who are not quite as accurate with a saw as we would like to be and have the kerf poited out and already there ( as long as you have the required marking knife>
Worked as expected with my 3/4 Christmas present dovetail saw and even I can get passable dovetails.
