Regular Shawn Shim Dovetail Offset Tool

Name: Regular Shawn Shim Dovetail Offset Tool
Brand: RC Woodworking Hand Tools, Inc
SKU: RCSA-002
Price: 57.0 CAD
Availability: InStock
Rating: 4.93 (46 reviews)

$57.00 - $57.00

$57.00

$57.00 - $57.00

$57.00

Gallery

Full Description

Customer Reviews

One of the most difficult tasks in hand cutting dovetails is accurately transferring the tails and precisely sawing the pins. Rob's improved method of transferring tails to the pin board by offsetting the tailboard by the thickness of the saw kerf takes all the guess work out of where to saw.

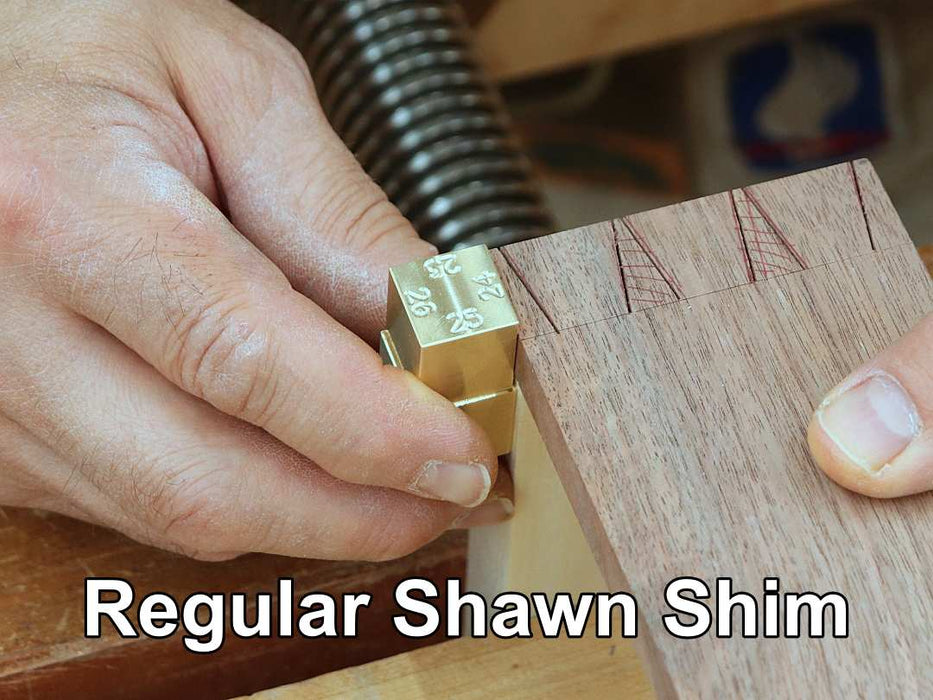

Offsetting by the exact thickness can be challenging, but the Shawn Shim helps improve your offset accuracy. The brainchild of one of our Purple Heart Project alumni, we named the shim in honor of him.

Precisely milled to work with our regular dovetail saw, which requires a kerf thickness of .024 inches. The regular Shawn Shim has four different offsets to allow you to tighten or loosen the fit of the dovetails as needed.

CNC milled from solid brass.

3/4 inch x 3/4 inch wide. 1-1/2 inches tall.

Four offset sides: .023, .024, .025, .026 of an inch thickness.

Offset amount engraved on each end of the shim.

Weight: 100 grams

Made in Canada.

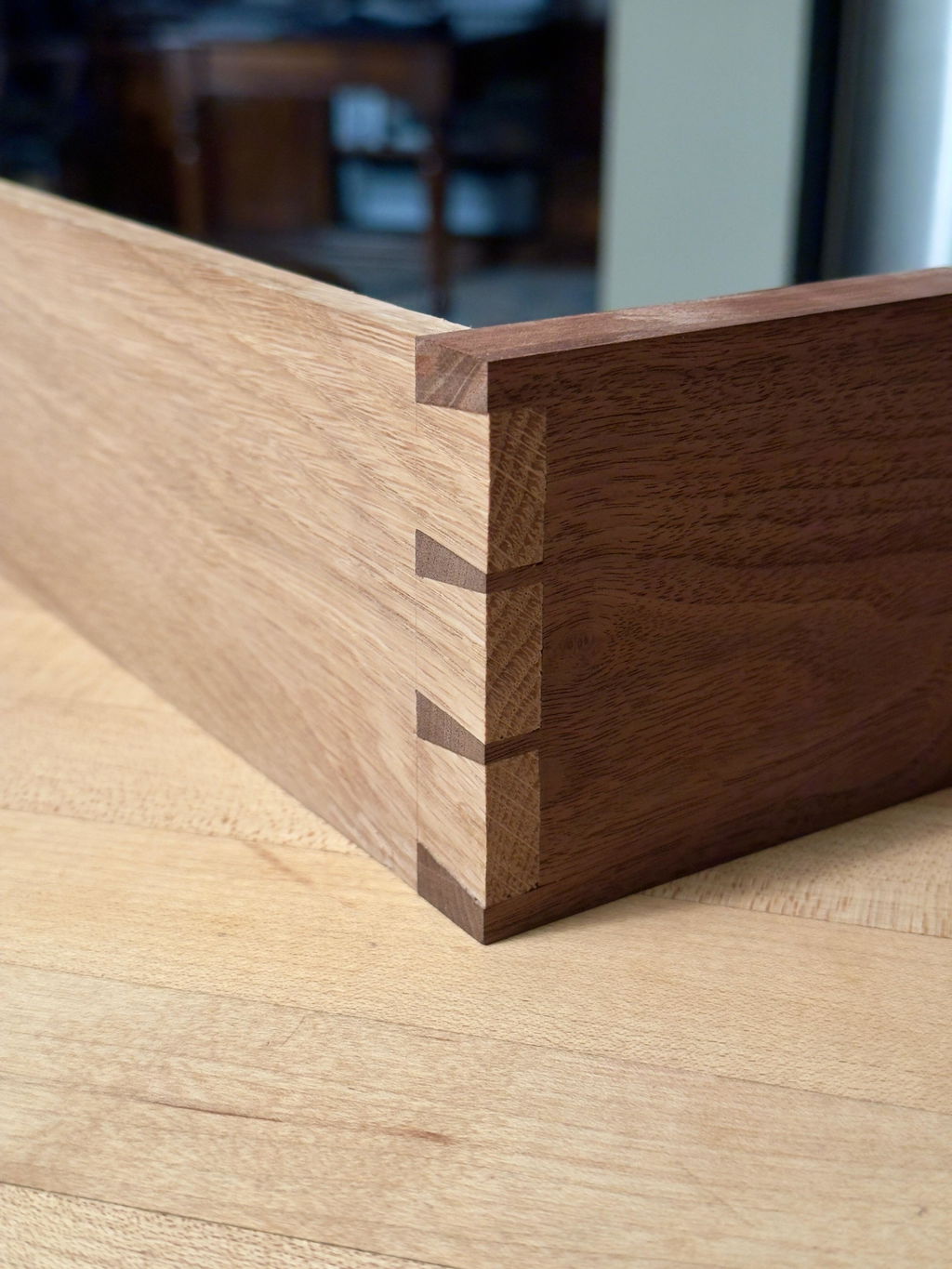

I love it. My 2nd dovetail turned out backwards, so I've put a #1 and a #2 at the ends. Hopefully that will eliminate the goof. It is so satisfying when the boards fit snug the first time or with a little touch up. I had a piece of wood that I had made for myself, but it is much nicer having a professional brass tool.

Great

Very helpful for his approach to dovetails

Shawn Shim

The Shawn shim really does make cutting dovetails easier. If that’s your thing the Cosman marking knife with the Cosman Shawn shim system is the thing. I like the new packaging too.

Ingenious device

Who will think about something new for this old joint? This is an excellent tool especially for people like me that are learning this technique. This makes it very simple cutting the pins. Good job, you always have something that makes complicated tasks easy. I was watching last night the device that helps to keep the right angle while sharpening the plane blade. That will be my next purchase. Thank you for being there for us

Shawn Shim

Great addition to my shop. Works as advertised. Arrived quickly.
