Cosmanized WoodRiver Mortise & Tenon Gauge

Save 7% Save 7%
Original price $206.00
Original price $206.00 - Original price $206.00
Original price $206.00
Current price $192.00
$192.00 - $192.00
Current price $192.00
Availability:
in stock, ready to be shipped
Gallery
Full Description
Customer Reviews

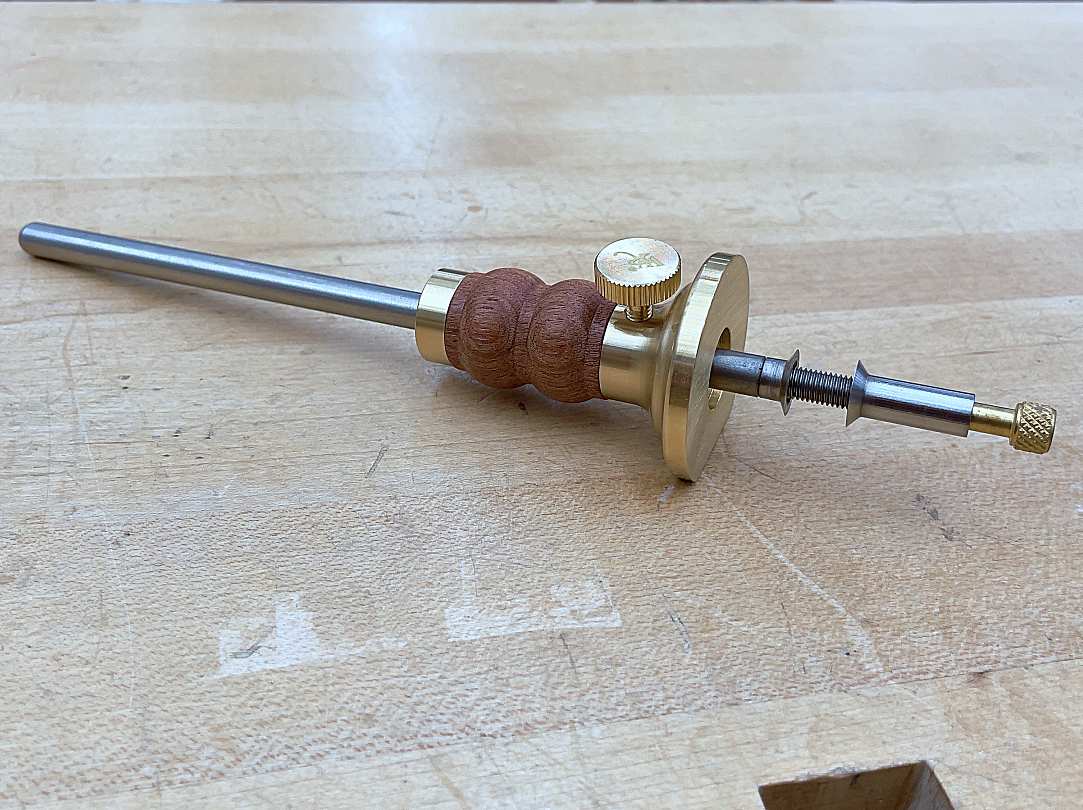

My "Cosmanized" WoodRiver Mortise and Tenon Gauge combines my Mortise and Tenon attachment with a "Cosmanized" WoodRiver marking gauge.

  • Designed for marking out a mortise & tenon joint in furniture making.

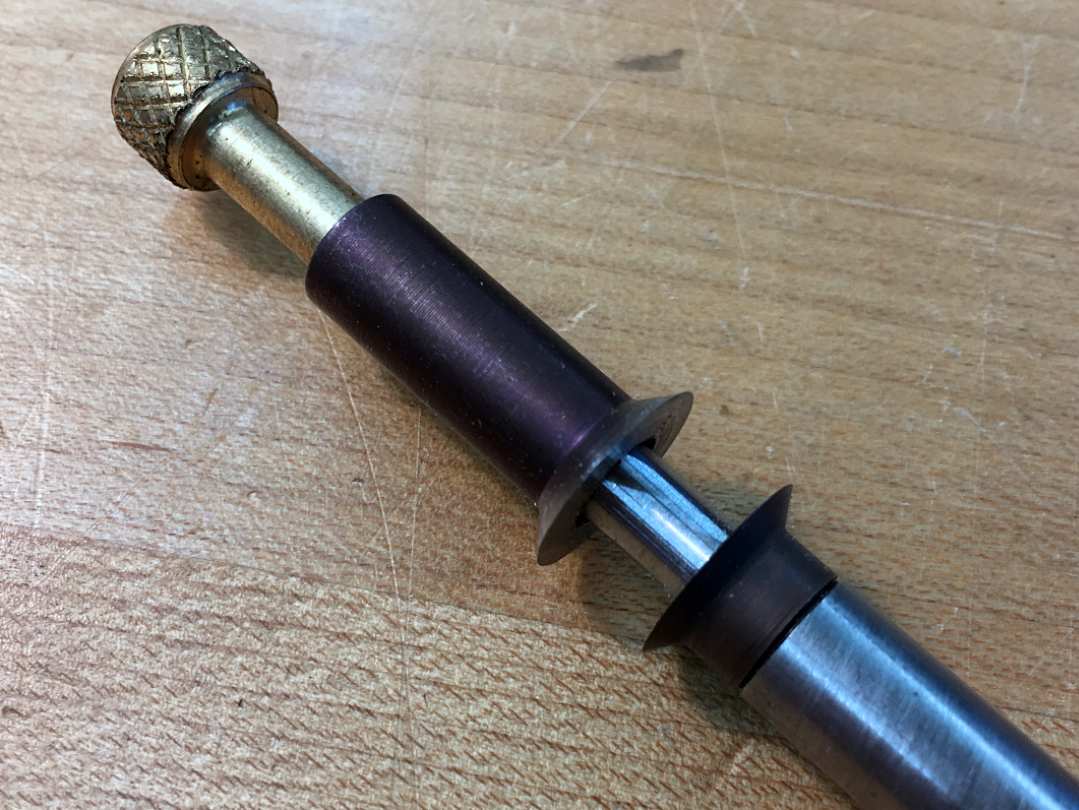

  • Width range between the two cutters: 3/16 inch to 11/16 inch wide.
  • Works best for marking out cuts between 1/4 inch to 5/8 inch wide.
  • Designed primarily for marking out the tenons but works for the mortises as well.
  • Place your mortise chisel between the cutters, snug up the cutters to the chisel sides, using the knurled handle lock the cutters in place, remove the chisel.  Now your gauge perfectly matches the width of your chisel.
  • When laying out tenons, the bevel / waste side of the gauge is perfectly located on the "waste" side of the line.
  • When laying out mortises, the bevel / waste side of the cutter is located on the "keep" side of the line.
  • Rob recommends laying out the mortise using just one line with a standard marking gauge, instead of this gauge.  The reason for this is it is much easier to register your mortise chisel to one line verses two lines when chopping.

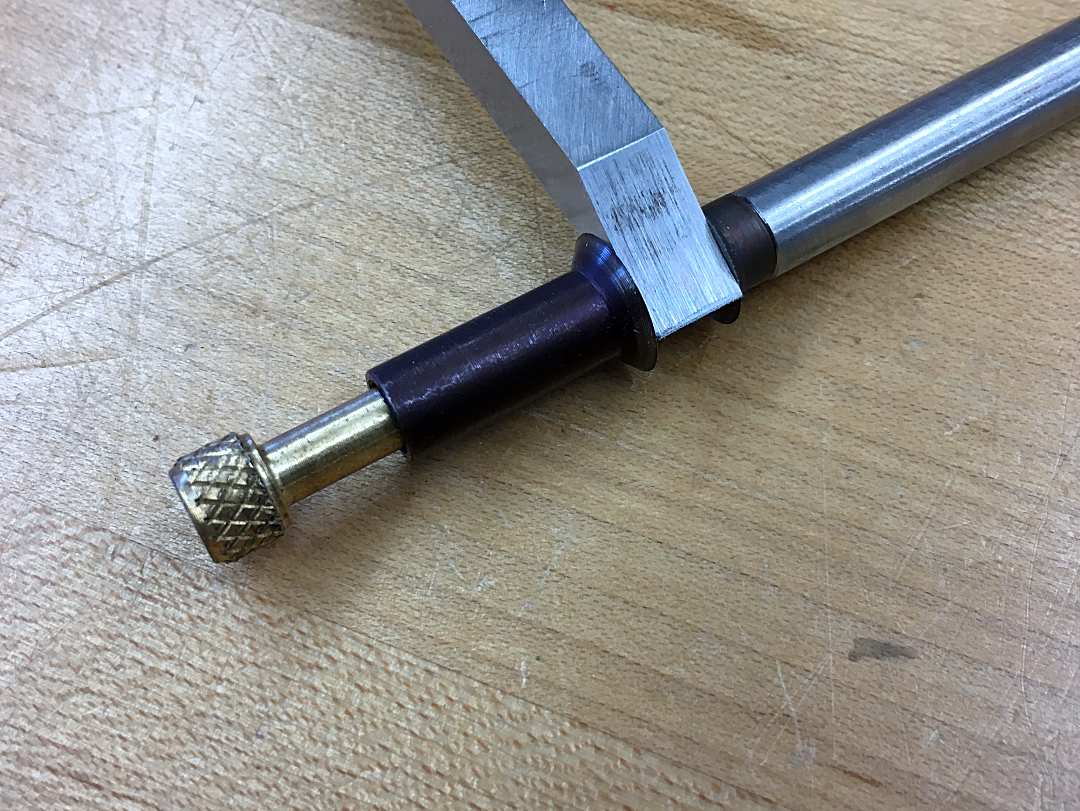

  • A brass knurled locking handle

  • An O-1 hardened cutter.


Customer Reviews

Based on 31 reviews
94%
(29)
3%
(1)
3%
(1)
0%
(0)
0%
(0)
E
Eric StPhillips
a solid tool with reliable performance

As Rob notes, it's good to have two of these to preserve your settings during a project. I liked my first one so I bought a second. This one I purchased with the mortising cutters. Nice tool with thoughtful modifications, particularly the dual cutters and the flat on the fence that keeps it from rolling off the bench

S
Steve Hanegan
You can feel the quality!

Simply picking up this tool and feeling it in your hands is a joy and a satisfying experience. The finish, the “heft” and the tiniest of details are the hallmarks of a tool that enormous thought and care and skill have gone into production. This gauge inspires me to be a better worker! A true joy to hold and to use, I look forward to passing this on to the generations who come after me.

A
Anonymous
Worth the Price

Rob’s team has done great job customizing a Wood River tool. The enhancements are worth the price.

A
Anonymous
Mortise and Tenon Gauge

Good in the hand.

S
Stan Roberts
Very high quality

Very high quality. This Cosmanized mortise and tenon marking gauge is much better quality that a Veritas marking gauge I bought from Lee Valley and had to send back due to sloppy fit of the rod in the fence and then another one from Lee Valley with rough edges on the cutter. Buy Rob Cosman's--it is very high quality.
