Our Hex Socket Replacement Screws: Vintage Stanley Bailey Version, upgrades the five adjustment screws on your Vintage Stanley Bailey bevel down bench planes, giving you significantly better control versus the factory supplied slotted screws.

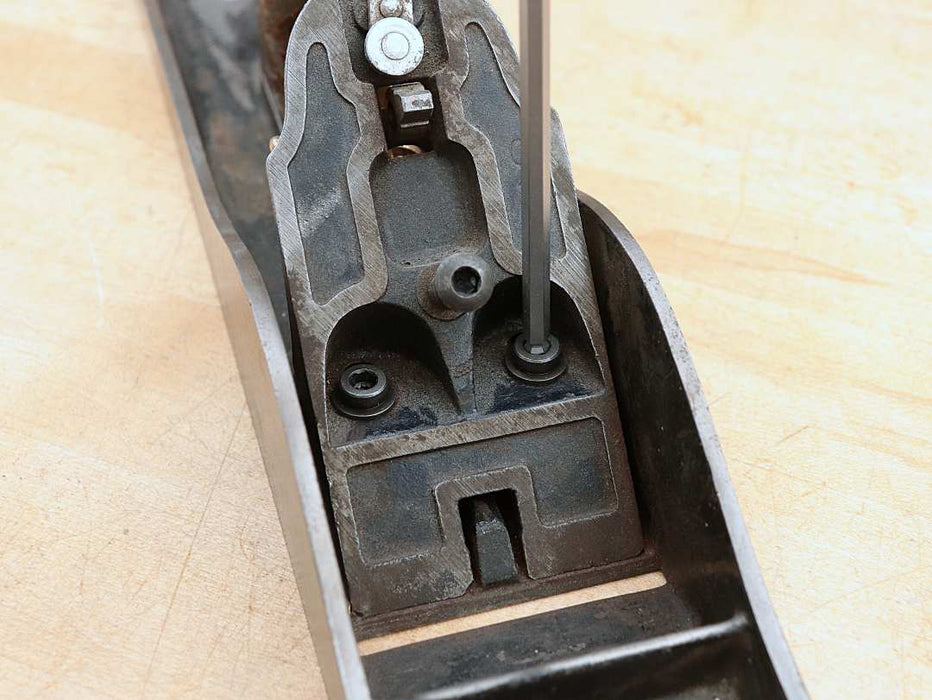

Our hex socket screw set replaces the following five factory screws: lever cap screw, chip-breaker screw, 2 x frog retaining screws (bailey style), and the frog adjustment screw.
Each screw has a 3/16 inch hex socket head so that all our plane adjustment screws can be adjusted using the same size hex driver.

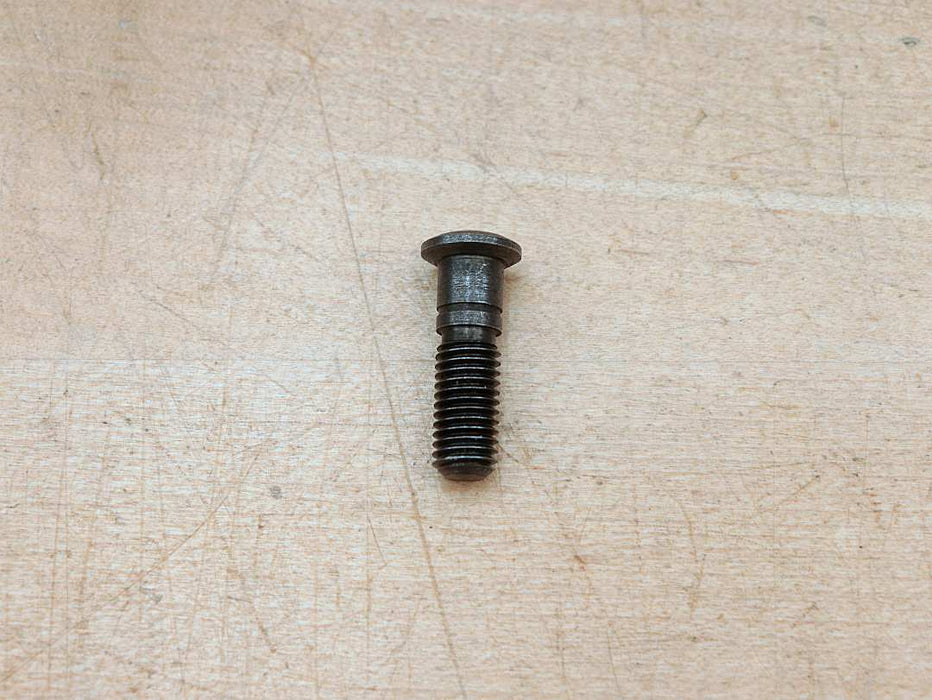

The underside of the lever cap screw is countersunk so that it "grips" the lever cap when pressure is applied preventing the slippage that the factory supplied lever cap screw is prone to doing.
See our Hex Drive Adjustment Drivers for use with these screws.
Product Details:
-
Sold as a set ONLY; no individual screw sales.
-
Fits Vintage Stanley Bailey bevel down bench planes #2, #3, #4, #4-1/2, #5, #5-1/4, #5-1/2, #6, #7, and #8.
- May fit other vintage planes in the Stanley Bailey style, but we have not tested them.
- Screw Thread Sizes (OD X TPI)
- Chip-Breaker screw: 5/16 inch x 18
- Frog Adjustment screw: 1/4 inch x 24
- Frog Retaining screws: #12 x 20
- Lever Cap screw: 9/32 inch x 24
