Rob Cosman's Hand Saw Set: Rip & Crosscut

Sold out
Original price $0.00 - Original price $0.00
Original price $0.00
$748.00
$748.00 - $748.00
Current price $748.00
Availability:
Out of stock
Availability:
Out of stock
Gallery
Full Description
Customer Reviews

Designed specifically to cut dry, furniture-grade, soft and hardwoods, our hand saws are made from hefty .035 inch thick, durable SK85 spring steel that has a Rockwell hardness between 50-55The thick saw plate makes our hand saws quite stiff which provides for easy and kink-free sawing and the steel retains its edge longer than other varieties, but still easily hand sharpened.

The teeth are cut using a CNC diamond saw. The rip saw is filed rip cut at 7 teeth per inch (TPI).  The crosscut saw is filed crosscut at 9 teeth per inch.  Each saw has a minimal .003 inch set per side. This makes for a highly consistent and sharp tooth lines that slices cleanly and precisely across the grain (crosscut) and with the grain (rip) while the minimal set keeps the saw laser straight in the cut.

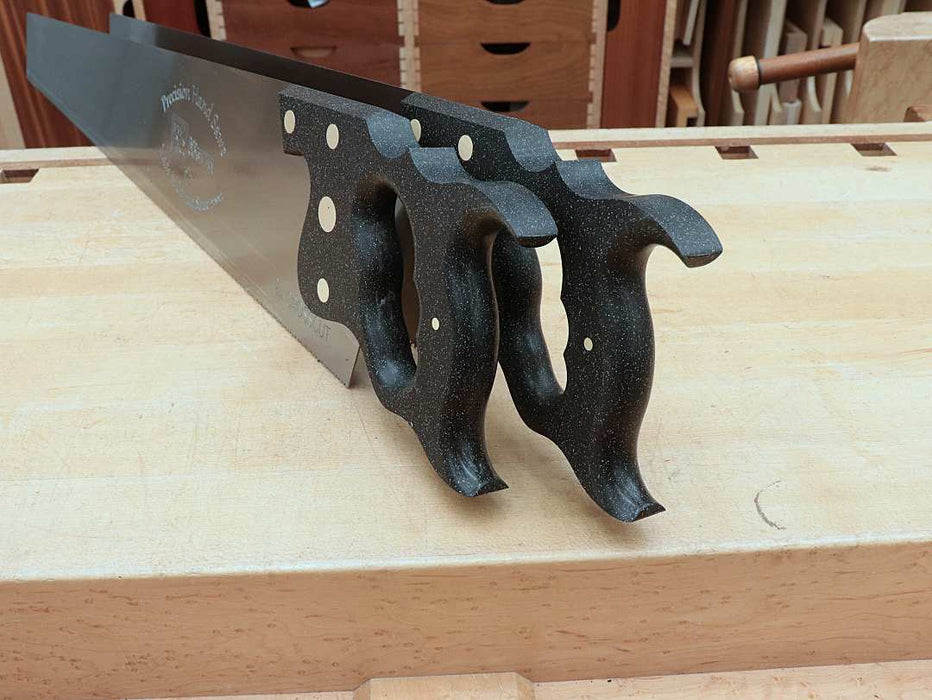

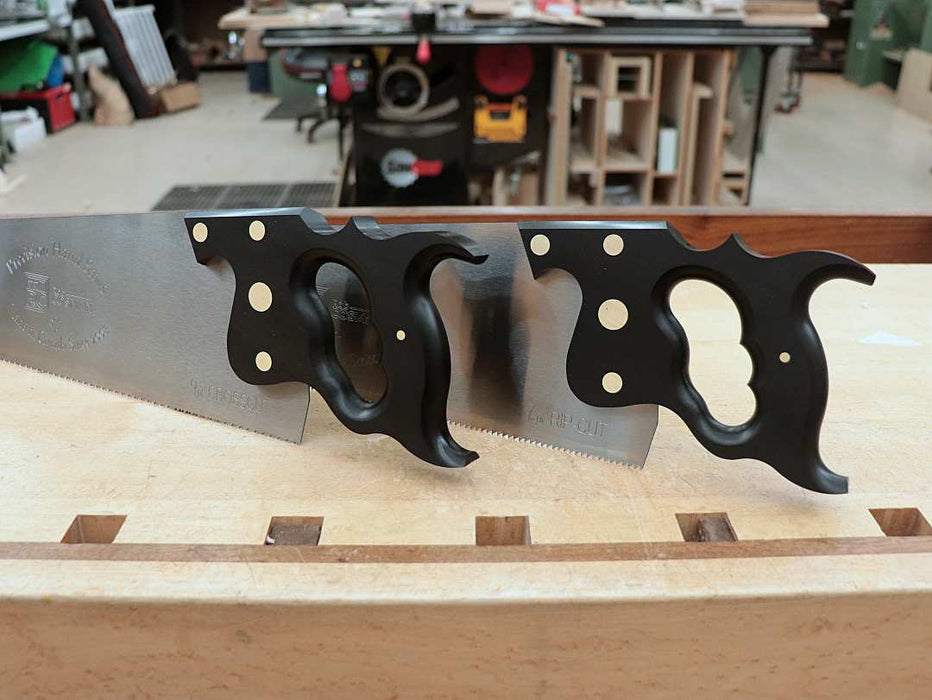

Our closed handle design hearkens back to the Disston D-7 saws of yesteryear, but with our own unique modifications. Our handles have memory enhancing carved finger recesses for a perfect and repeatable fit.  Four brass split nuts and bolts secure the handle to the blade at a hang angle of 16 degrees which keeps your wrist aligned with your forearm for better and more comfortable body mechanics while sawing.  We make our handles from Richlite incredibly durable, sustainable, and versatile material made from High-grade FSC-certified paper infused with a thermosetting resin.

Product Details:

  • Size. Overall length of each saw (toe to handle horn tip): 26-1/4 inches.  Blade length (toe to heel): 22-3/16 inches.

  • Saw Plate Depth:  2-1/4 inches at the toe, skewing to 5-1/4 inches at the heel.

  • Weight: 680 grams (24 oz), each saw.

  • Saw Plate  Made from .035 thick, SK85 spring steel.

  • Crosscut Tooth Geometry. Filed crosscut at 9 teeth per inch (TPI).  Rake angle = 15 degrees.  Fleam angle = 30 degrees.

  • Rip Tooth Geometry. Filed rip cut at 7 teeth per inch (TPI).  Rake angle = 5 degrees.  Fleam angle =  0 degrees.

  • Set.  Minimal set of .003 inch each side of the saw plate which produces a .041 inch wide saw kerf.

  • Handle. Closed handle with finger recesses.  Our handles are made from Richlite an incredibly durable, sustainable, and versatile material made from High-grade FSC-certified paper infused with a thermosetting resin.

  • Hang Angle: 16 degrees.
  • Handle Size & Determining your Size: Our handles come in two sizes: Regular and Large.  Please refer to the picture above showing how to measure your hand and determine what size handle is correct for you size hand.

Customer Reviews

Based on 7 reviews
100%
(7)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Josh W
Just dont tell your spouse…

I spent months deliberating over this expense. Watched all the videos, bought vintage/used distons and tried to sharpen and refurbish them, convinced myself that the woodcraft special Japanese saws would do… and after all that, just buy these! The time, frustration, and money I invested into every alternative was not worth it! (Although, my 4TPI Diston Rip makes quick rough work…) I am very pleased, just wished I would have saved the money (time and effort) and got these. Never has a cut been straighter (call it placebo) or cleaner, and it makes me eager to do more.

Got the Dovetail too… if you have the Veritas, boy are you in for a treat!

PS: Rob, make adjustars for Veritas low angle!

J
Jody Kelly
Hand saws

I love the saws

G
Gordon Curry
Cosman Panel saws

I purchased these saws because of the excellent performance i have received using my Cosman dovetail and tenon saws. Very sharp and straight cutting. Thanjs

D
Darryl Brook
Panel Saws

Theses saws are amazing, just like the back saws, not only do they cut very well but as straight as the back saws as well. The handle angle is different to my other saws this size, but work very well to transfer the force into the lower part of the blade and not above the or near the top of the assembly. Great job guys. Was very good to get these in a discounted bundle as by the time you facture in the conversion to Australian dollars and the freight around the world, they are well worth the "as Rob says: the one time expense cry! All the best team.

J
Jeremiah Peschka
Wonderful saws

I don't have a huge amount of experience with handsaws, but these two saws have set a very high bar. The handles are well constructed and feel like careworn wood. I get a feeling that's not quite like "this was my grandfather's hand", but maybe 30% of the way there (thanks, not-my-grandpa-Rob). They fit my hand well. Even with sawing through bix box store pine, they didn't bind up.
