Cosman Workbench Vise

Cosman Workbench Vise

$594.00 - $594.00
$594.00
$594.00 - $594.00
$594.00
Gallery
Full Description
Customer Reviews
  • Cosman Workbench Vise

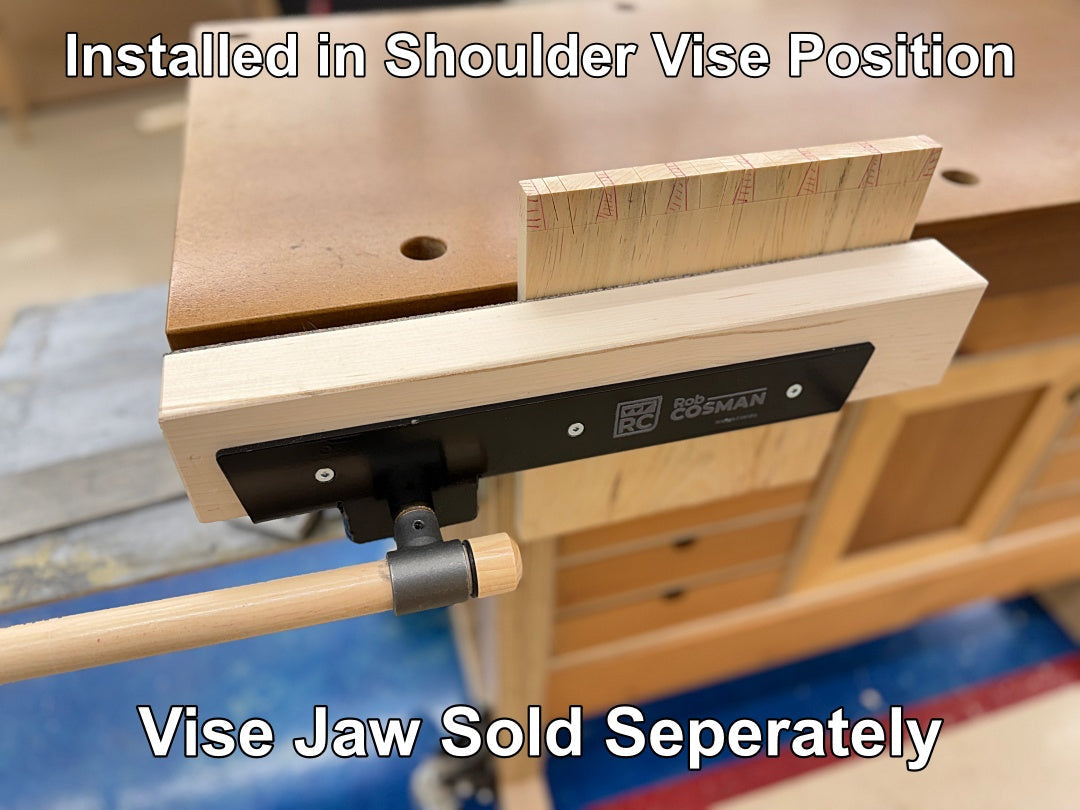

  • A close-up of a woodworking vise mounted on a workbench, with overlaid text reading 'Installed in Shoulder Vise Position' and 'Vise Jaw Sold Seperately.' The product appears to be the vise body and mounting hardware shown attached to the bench, photographed in a workshop setting.

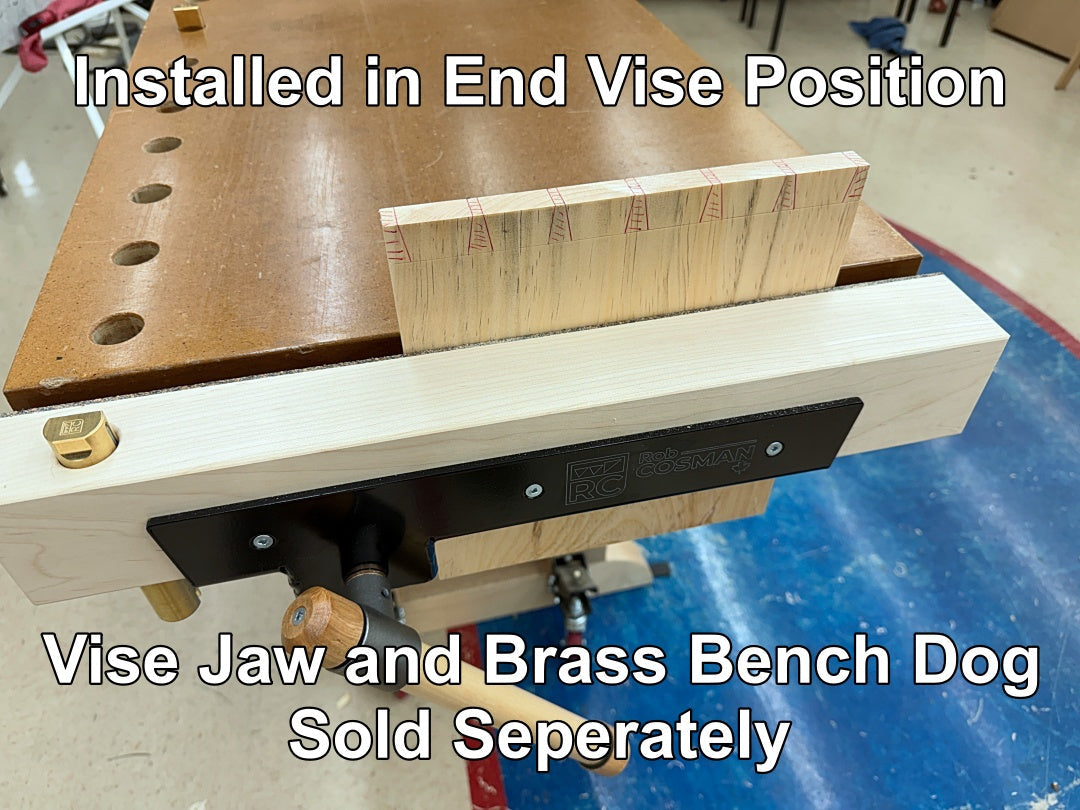

  • A woodworking vise setup with overlaid text reading 'Installed in End Vise Position' and 'Vise Jaw and Brass Bench Dog Sold Separately.' The photo shows a light wood bench dog attached to a workbench end, with a wood block positioned above it on a workshop floor.

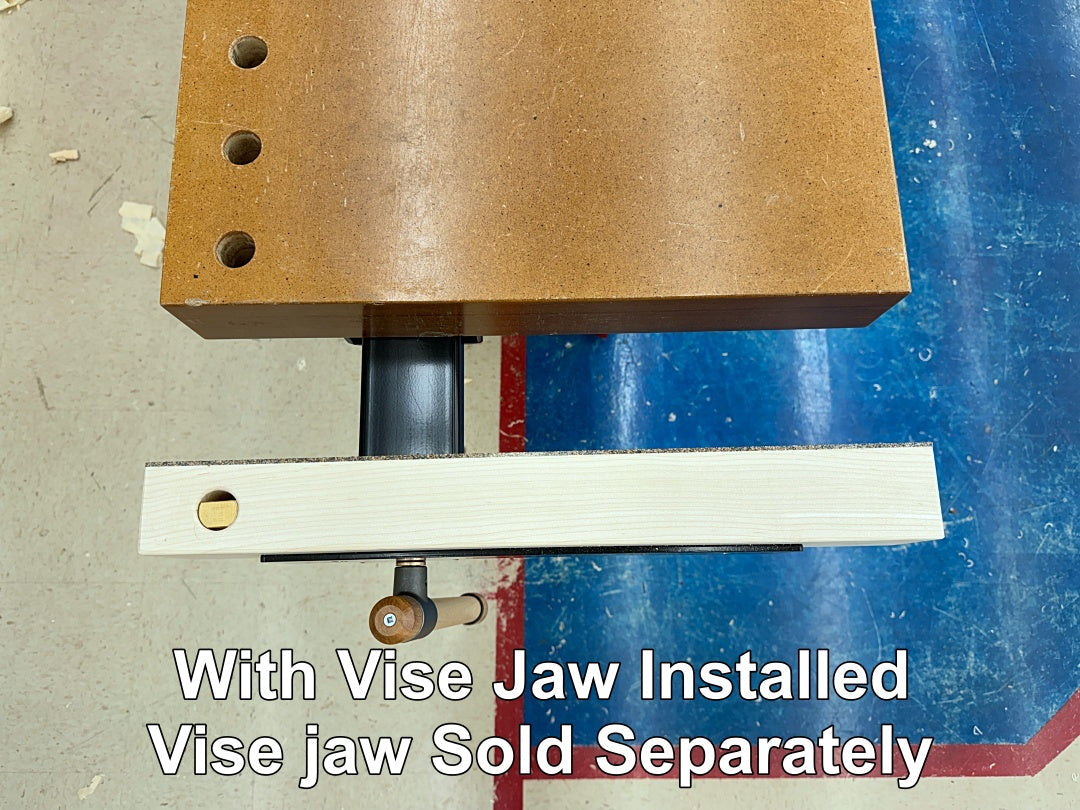

  • A close-up of a woodworking vise setup showing a brown wood block with pre-drilled holes, a black vertical column, and a white guide rail with a brass bolt. White text at the bottom reads 'With Vise Jaw Installed Vise jaw Sold Separately' on a workshop floor background.

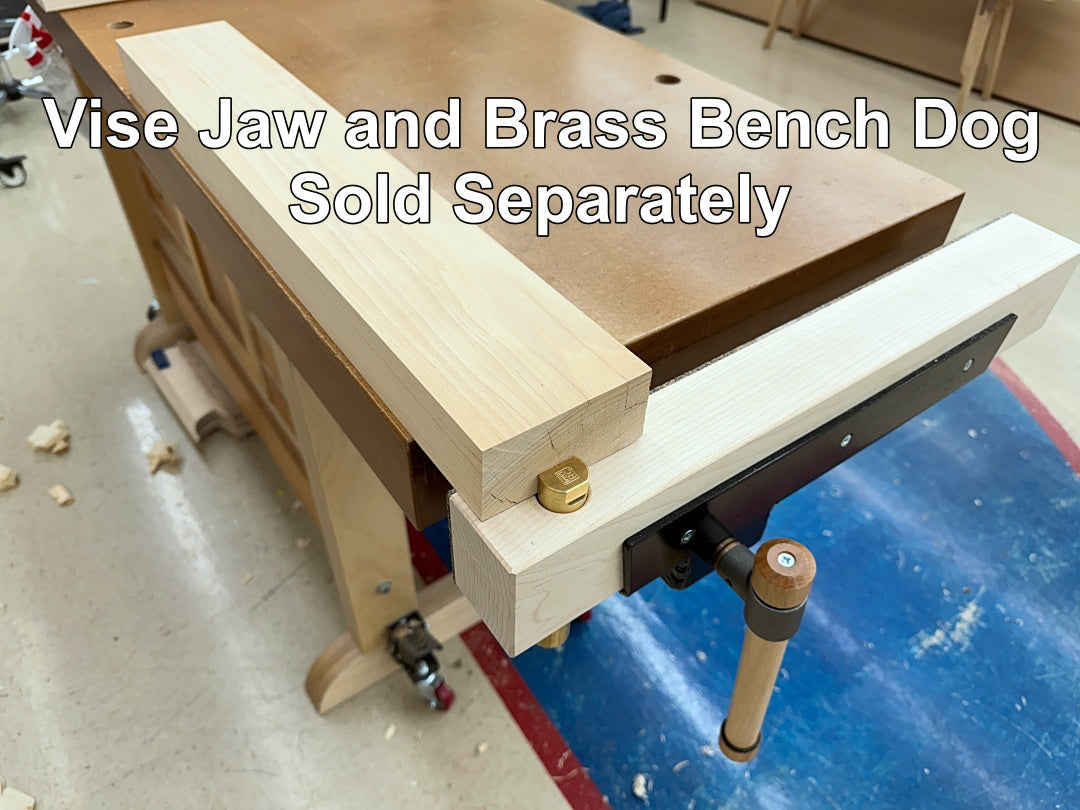

  • A close-up of a wooden bench vise with a brass adjustment nut and a wooden handle, mounted on a wooden workbench in a workshop. White text overlay reads 'Vise Jaw and Brass Bench Dog Sold Separately'.

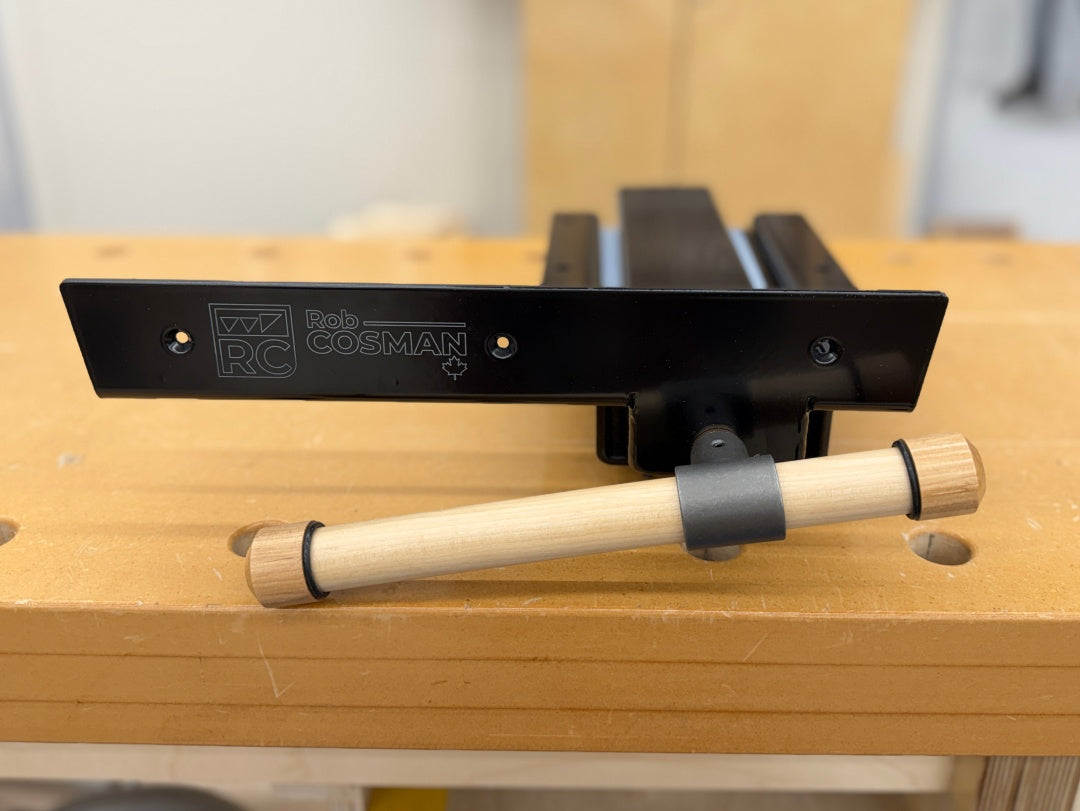

  • A close-up of a metal Rob Cosman Workbench Vise resting on a wooden workbench with a wooden-handled tin front.

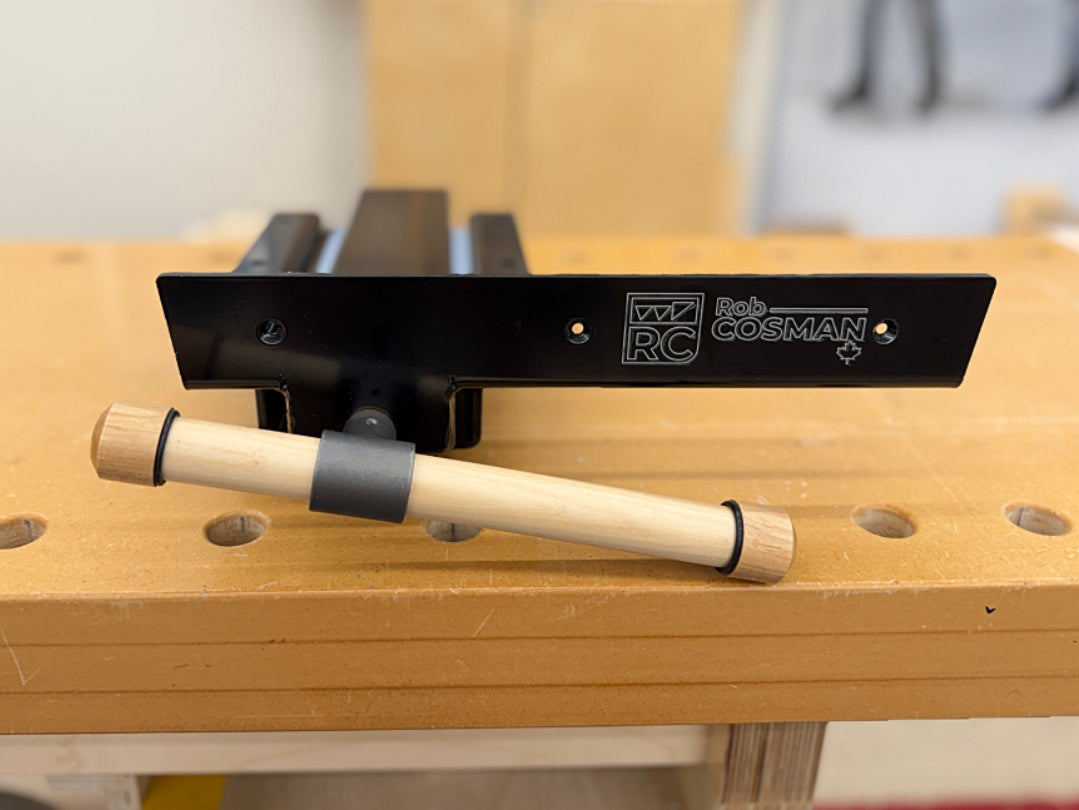

  • A close-up of a Rob Cosman Woodworking Vise, resting on a wooden workbench with a wooden-handle in front.

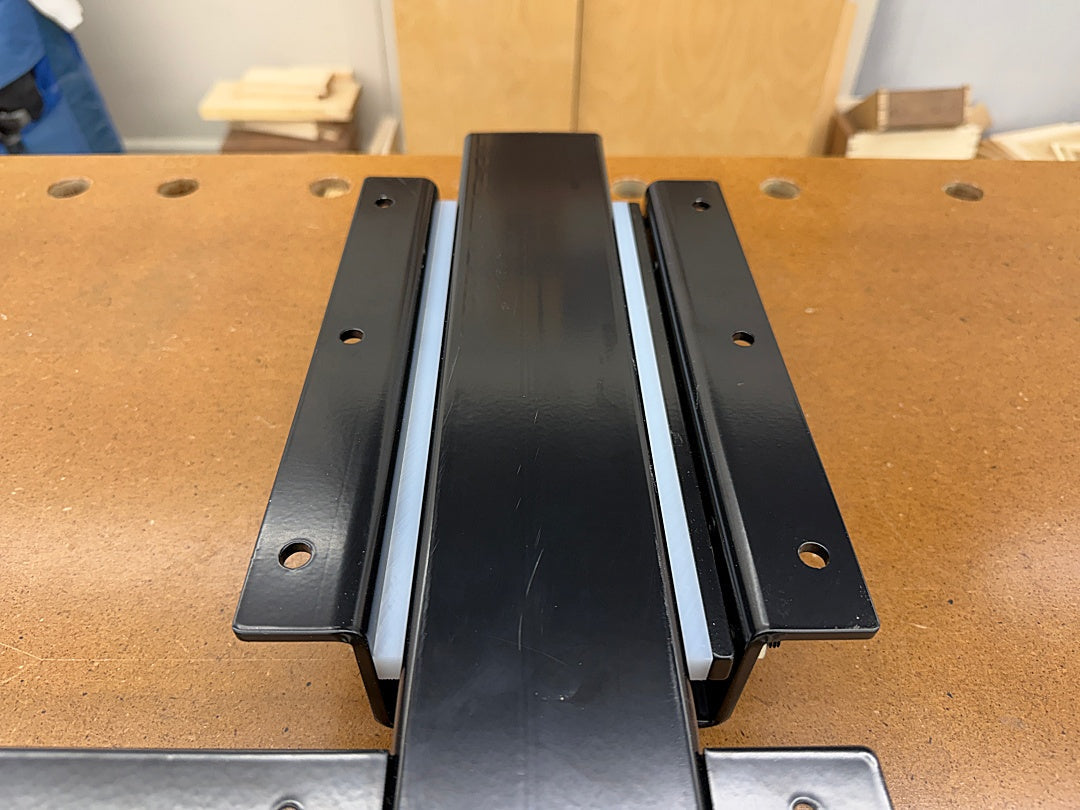

  • A black metal woodworking vise mounting bracket on a wooden workbench, with a light blue panel visible behind them.

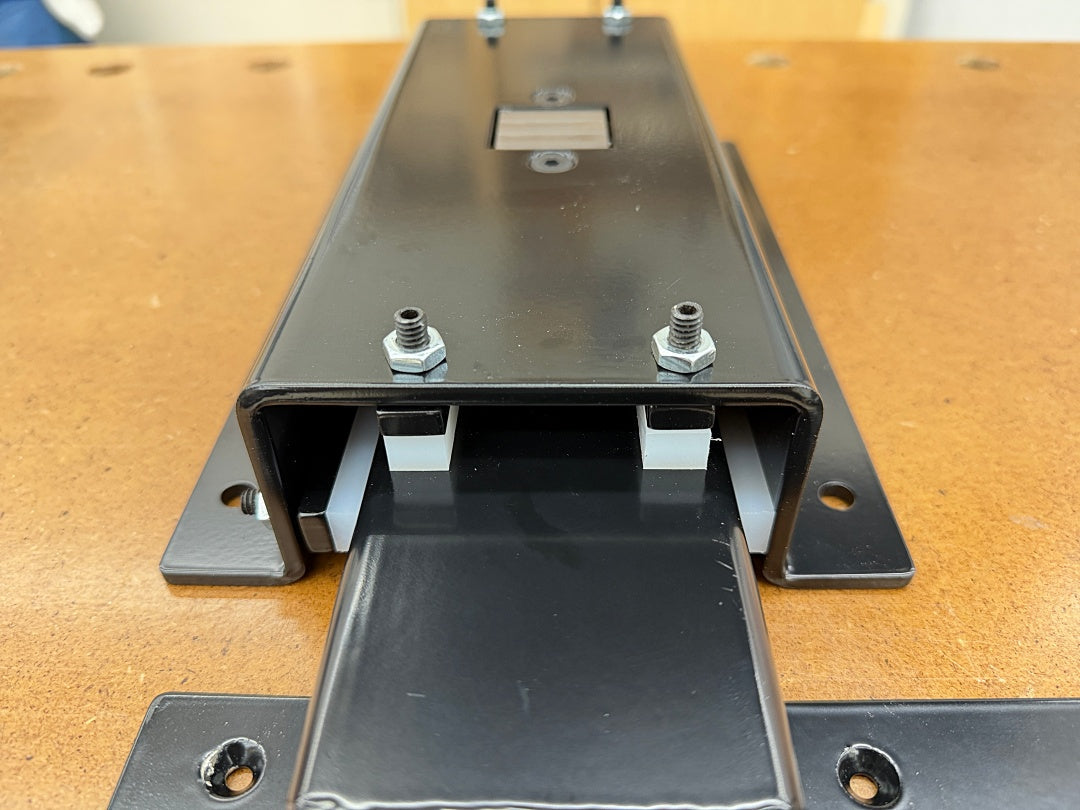

  • A close-up of a black metal mounting bracket or channel assembly with bolts and a sliding plate, shown on a wooden workbench.
  • Close-up of a black metal mounting bracket or rail assembly with white rectangular inserts, photographed on a tan wood or cork surface.

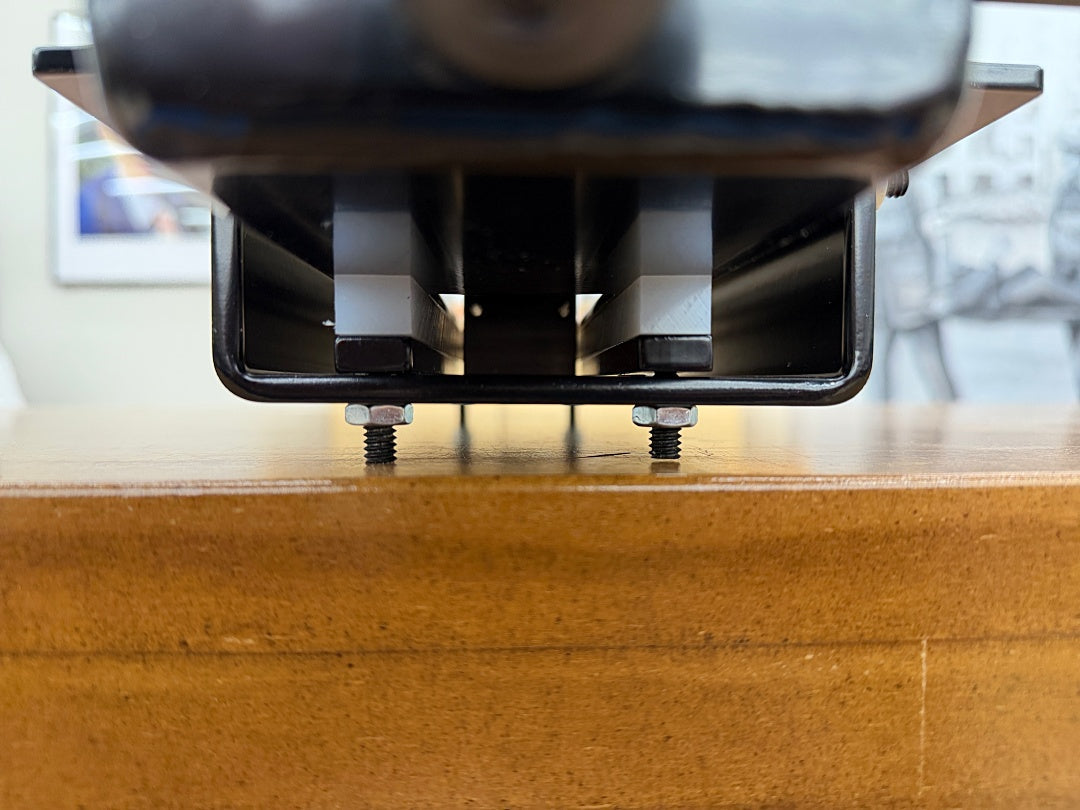

  • Close-up of a black metal mounting bracket with two visible screws fastened onto a wooden surface, with a blurred indoor background.

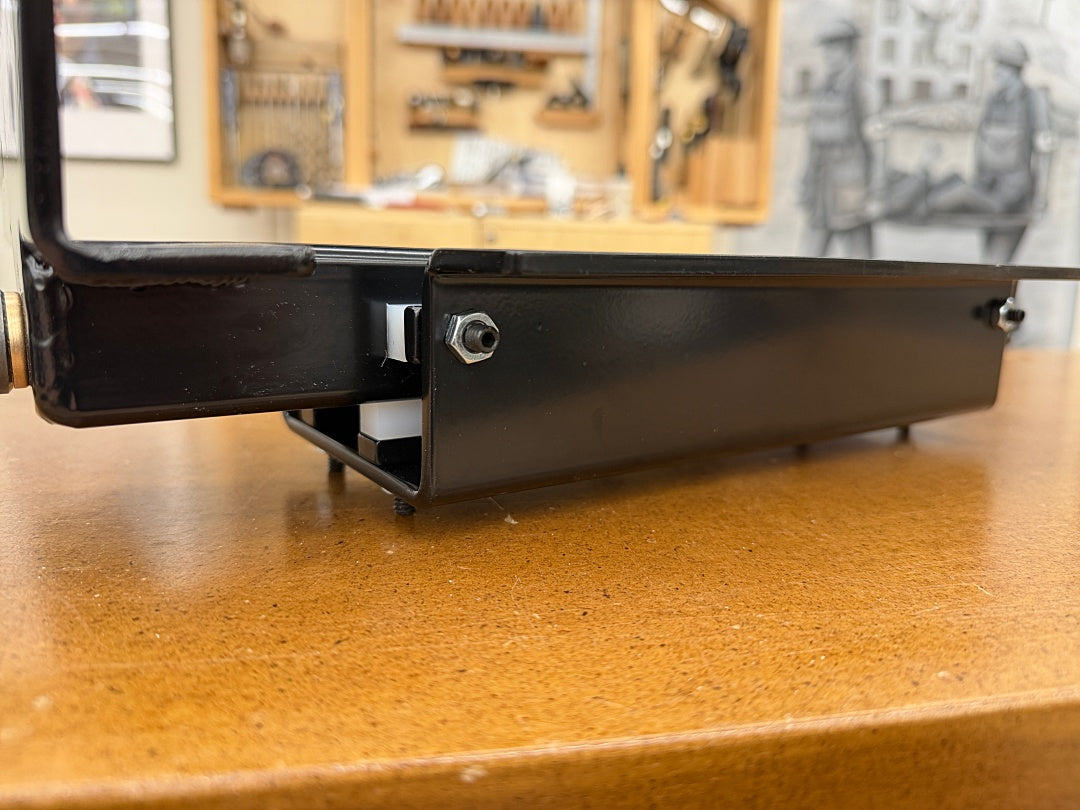

  • A close-up of a black metal woodworking vise bracket mounted on a wooden table, with a workshop interior blurred in the background.
  • Cosman Workbench Vise

The Cosman Workbench Vise is a unique design intended for new workbench builds or as a replacement vise for existing workbenches. It can be easily and quickly installed in either the face-vise or end-vise position on most workbenches. Comes in left-handed and right-handed variants.

Our vise design is inspired by the traditional shoulder vises used by European masters. Made from HSS and mild steel, the vise is built around a 3-inch (76mm) wide by 14-3/4 inch (375mm) long hollow structural steel tube (HSS) that slides through a U-shaped steel housing, while maintaining consistent smooth travel and resisting twist. Unlike most face or end vises, our design eliminates the metal guide bars that can interfere with clamping, providing 12 inches (305mm) of open space in which to secure your workpiece.

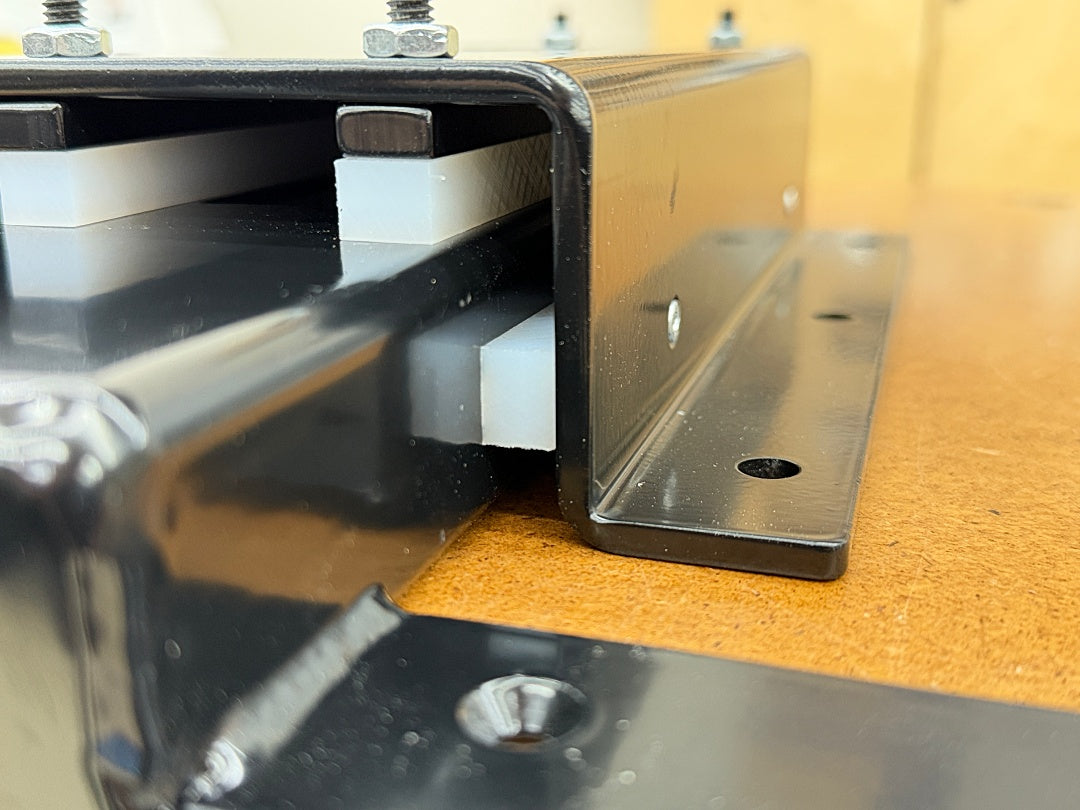

Racking is virtually eliminated by the four 10-inch (250mm) “jacking strips”, one on each side of the way tube and two along the bottom. The jacking strips are made from steel and PE plastic (UHMW) allowing the powder-coated HSS tube to slide easily. Each jacking strip can be individually adjusted using set screws and jamb nuts. Once properly adjusted, the strips virtually eliminate racking.

A single 3/4-inch (19mm) x 5-TPI (teeth per inch), 7-inch (175 mm) long steel Acme-threaded rod passes through the way tube and engages an Acme-threaded nut welded to the center of the housing. The front of the threaded rod attaches to a T-shaped handle fixture at the front of the vise. This screw mechanism provides 5-inches (100mm) of overall travel, less the thickness of your wooden jaw. A hard maple handle, 1-inch (25mm) thick and 11-inches (280mm) long, provides controlled clamping without over-clamping, making the vise well suited to precision bench work.

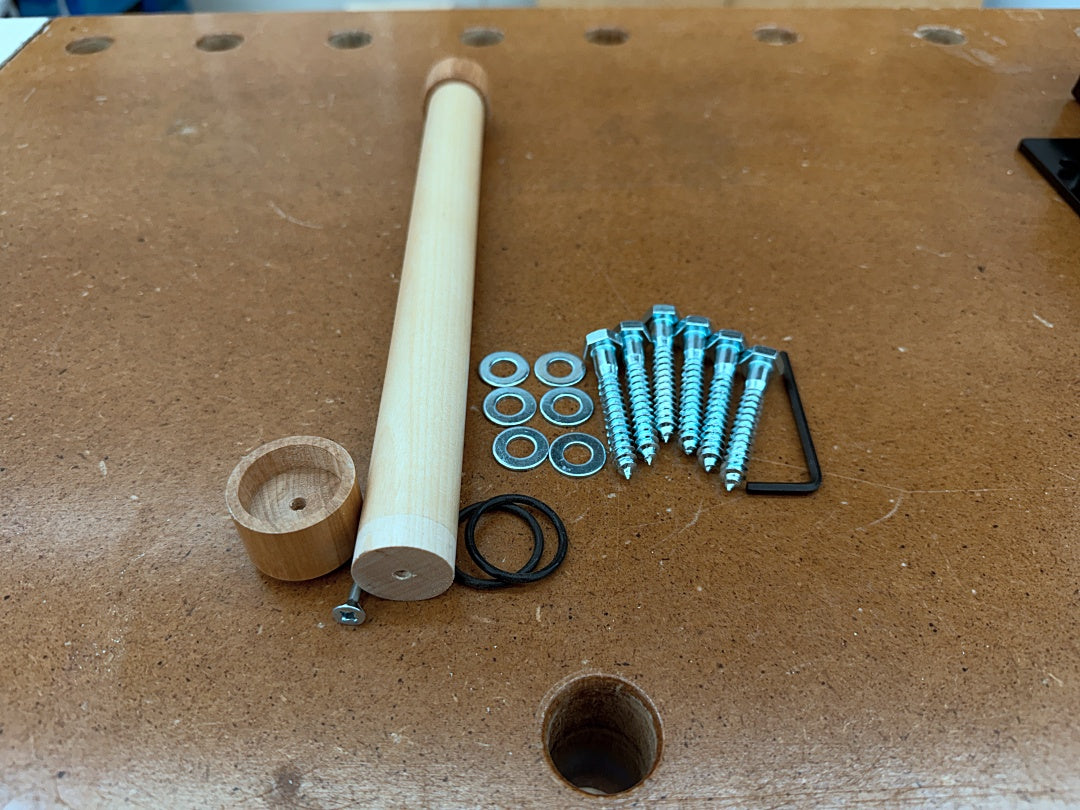

Straightforward to install in a new build or retrofitted onto an existing workbench, the vise requires an unobstructed flat mounting area on the underside of the benchtop at least 13-inches (330mm) deep by 7-inches (175mm) wide, as well as a minimum benchtop thickness of 2-inches (50mm). It mounts to the underside of the benchtop using six lag bolts (included).

Product Details:

  • Vise Size: 17-inches (432mm) wide x 15-inches (381mm) long x 4-1/2-inches (114mm) thick.
  • Minimum Mounting Area size: 13-inches (330mm) deep x 7-inches (175mm) wide.
  • Minimum Benchtop thickness required: 2-inch (50mm) thick.
  • Minimum Vise Jaw thickness: 1-1/2-inch (mm) thick.
  • Material:  3/16-inch (4.7mm) thick HSS with machine welded joints.
  • Designed for easy undermount workbench installation.
  • Can be used in the face or end-vise position.
  • Comes in left and right-handed versions.
  • Manufactured in Canada.
  • Wooden Vise jaw NOT INCLUDED.
  • Video instructions for installing the Cosman Workbench Vise are available in the media gallery on this product page.
